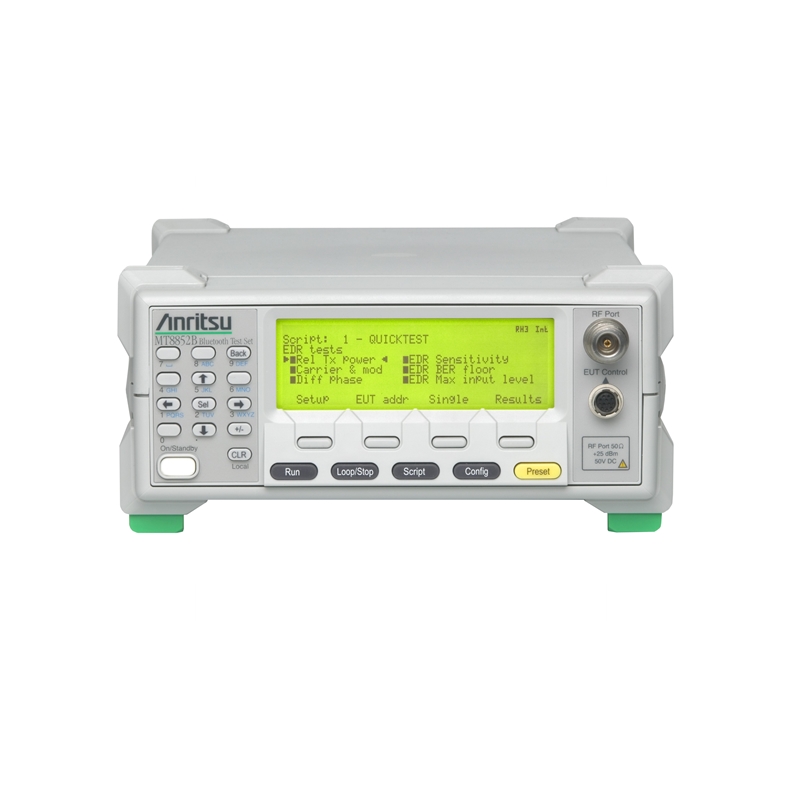

Bluetooth Test Set MT8852B

The Bluetooth Test Set MT8852B is the market leading RF measuring instrument for design, providing production test for a wide range of products that integrate Bluetooth® technology. It supports Basic Rate (BR), Enhanced Data Rate (EDR) and Bluetooth low energy (BLE) measurements of transmit power, frequency, modulation, and receiver sensitivity required by Bluetooth RF test specifications.
The MT8852B Bluetooth Test Set gives you a one-button test to fully characterize your Bluetooth implementation and ensure that quality is maintained. Initiating a script that tests a device in less than 10 seconds.

Category: Tags: , , , ,



Key Features
  • Support the latest Standard Bluetooth® v5.4
  • Measurements performed as defined in the Bluetooth RF test specification
  • Compliant with Bluetooth Core Specifications v5.4
  • Qualified by Bluetooth SIG for RF measurements
  • Supports 9 Basic Rate and 8 EDR test cases
  • Supports 30 Bluetooth low energy test cases
  • Single script runs Basic Rate, EDR and Bluetooth low energy tests
  • Audio testing capability. Three SCO channels with µ-Law, A-Law and CVSD air interface
  • BlueSuite Pro3 software provides graphical traces of modulation, power ramp, individual channel measurements, and receiver sensitivity search
  • Adaptive Frequency Hopping (AFH) test function for Bluetooth devices
