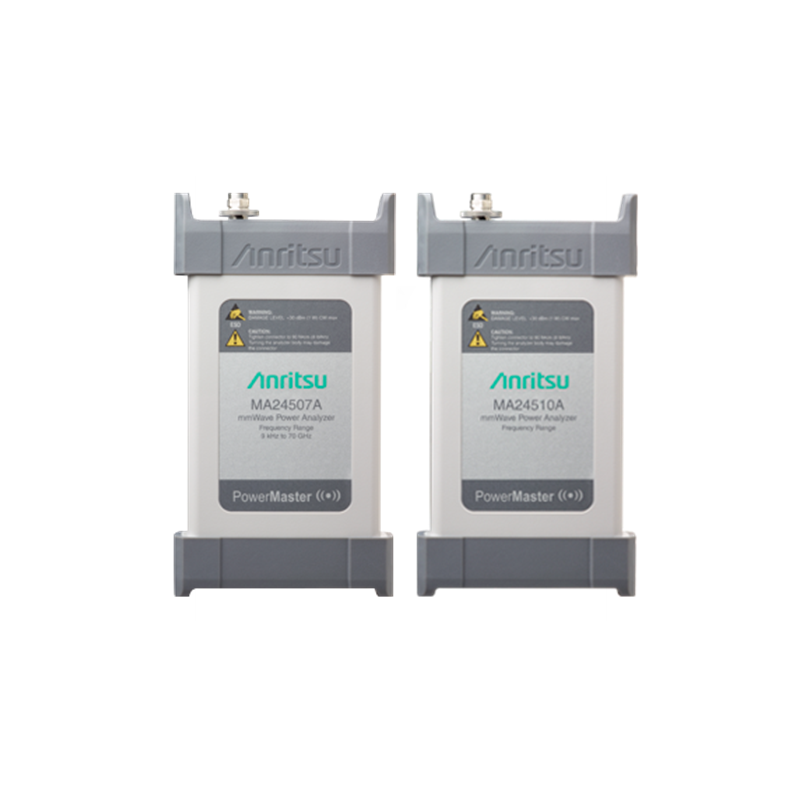

mmWave Power Analyzer MA24507A, MA24510A

• Low power capability to measure signals as low as –90 dBm
• Excellent for over-the-air testing, especially with mmWave signals that have high propagation loss
• User settings to control measurement speeds and noise floor
• Channel Monitor mode in PowerXpert for monitoring up to six frequency channels at once
• Power Hunter mode in PowerXpert for searching up to six signals within a frequency range
• Mounting holes for direct mounting to connect probes for over-the-air or on-wafer testing

PowerXpert

To utilize the powerful capabilities of Power Master, there several features to PowerXpert.

Support for Power Master general settings:

• Measurement mode
• Center frequency
• Span
• Resolution

Power Hunter mode: user defines a frequency range within which Power Master will identify the six highest CW amplitudes and their corresponding frequency

Channel Monitor mode: allows users to select up to six frequency channels (up to 20 MHz wide) and monitor their CW amplitude or channel power simultaneously
