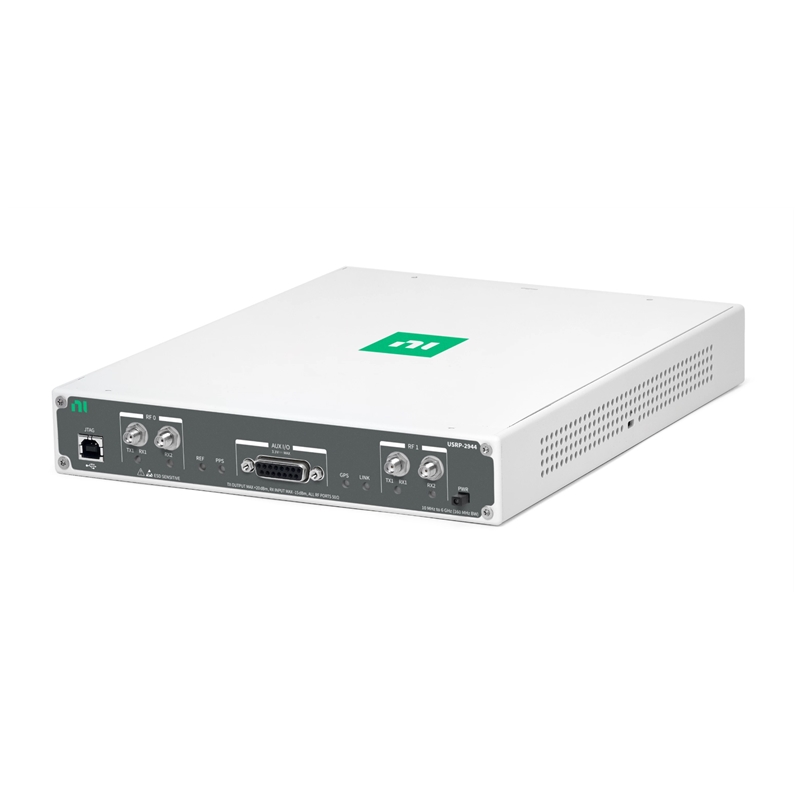

NI USRP-2944R, 160MHz BW, 10 MHz TO 6 GHz SDR (783149-01)

Frequency step

<1 kHz

Maximum output power (Pout)
10 MHz to 4 GHz

50 mW to 100 mW (17 dBm to 20 dBm)

4 GHz to 6 GHz

5 mW to 50 mW (7 dBm to 17 dBm)

Gain range[1]
0 dB to 31.5 dB

Gain step

0.5 dB

Frequency accuracy

2.5 ppm

Maximum instantaneous real-time bandwidth
160 MHz

Maximum I/Q sample rate

200 MS/s

Digital-to-analog converter (DAC) resolution

16 bit

Receiver
Number of channels

2

Frequency range

10 MHz to 6 GHz

Frequency step

<1 kHz

Gain range

0 dB to 37.5 dB

Gain step

0.5 dB

Maximum input power (Pin)

-15 dBm

Noise figure

5 dB to 7 dB

Frequency accuracy

2.5 ppm

Maximum instantaneous real-time bandwidth

160 MHz

Maximum I/Q sample rate

200 MS/s

Analog-to-digital converter (ADC) resolution

14 bit

Operating Environment
Operating temperature

23 °C ± 5 °C
