| Key product |

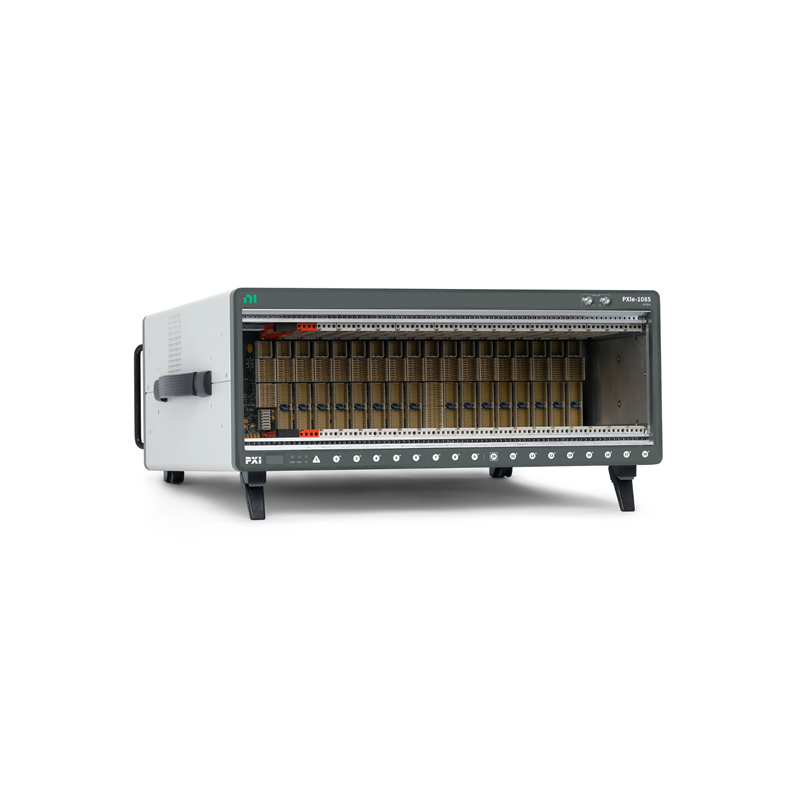

| Electrical The following section provides information about the PXIe-1085 AC input and DC output.AC Input Input voltage range100 to 240 VAC Operating voltage range 90 to 264 VAC Input current rating 12 to 6 A Input frequency 50/60 Hz Operating frequency range 47 to 63 Hz Over-current protection 15 A circuit breaker Line regulation <±0.2% 5 V <±0.1% ±12 V <±0.1% Efficiency 70% typical Power disconnect The AC power cable provides main power disconnect. Do not position the equipment so that it is difficult to disconnect the power cord. The front-panel power switch causes the internal chassis power supply to provide DC power to the CompactPCI/PXI Express backplane. You also can use the rear-panel 8-pin connector and inhibit mode switch to control the internal chassis power supply. |
